ESCO 10450 20-Ton Air/Manual Hydraulic Bottle Jack
$195.72
- Chrome piston and ram for added rust resistance.
- Heat treated extension saddle screw gives 3.25 in. added height when necessary.

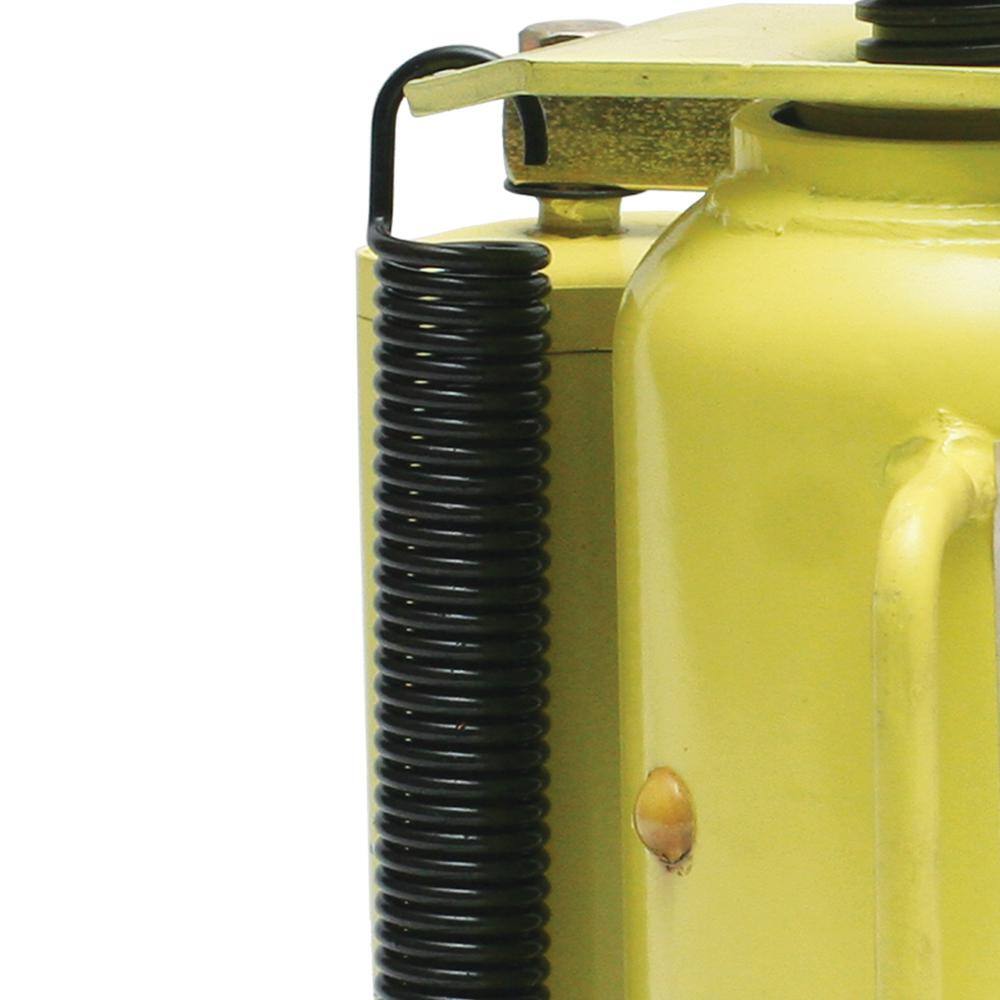

- Return springs for faster and controlled descent.
ESCO 10450 20-Ton Air/Manual Hydraulic Bottle Jack
The ESCO 20 Ton Air/Manual Hydraulic Bottle Jack (Model 10450) works to lift loads up to 40,000 lbs. Designed to meet ANSI/CE standards. The jack is operated by air or can be controlled manually, includes bar for manual pump lifting. Replacement 0-rings and seals are included.
- Chrome piston and ram for added rust resistance
- Heat treated extension saddle screw gives 3.25 in. added height when necessary
- Return springs for faster and controlled descent
- Aluminum air motor
- Minimum height 10.3 in.
- Maximum height 19.2 in.
Dimensions
| Base Length (in.) | 9 | Base Width (in.) | 5.25 |
|---|---|---|---|
| Collapsed height (in.) | 10.3 | Handle Length (in.) | 0 |
| Product Depth (in.) | 8 | Product Height (in.) | 12 |
| Product Width (in.) | 6 |
Details
| Features | No Additional Features | General Part Type | Bottle Jack |
|---|---|---|---|
| Included | Adjustable Saddle, Handle, Hardware, Hoses, Hydraulic Jacks | Material | Steel |
| Maximum Lift Height (in.) | 20 | Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 20 | Product Weight (lb.) | 35 |
| Saddle Diameter (in.) | 2 | ||
| Weight Capacity (lb.) | 40000 |
Warranty / Certifications
| Manufacturer Warranty | 1 year warranty |
|---|
| Brand |
|---|
