$293.00
- Conforms to NEC requirements for use in conduit and other recognized raceways for services, feeders and branch circuit wiring
- Annealed copper conductor
- Designed for wet or dry locations in temperatures not to exceed 194 ° Fahrenheit

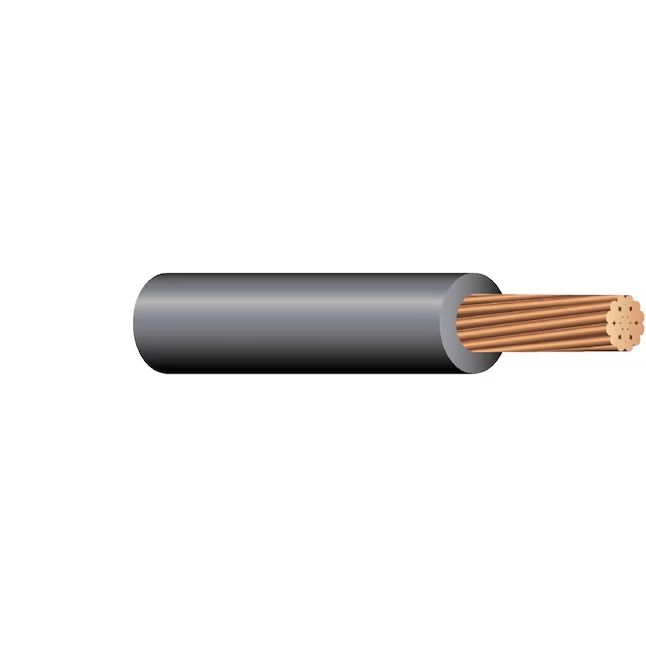

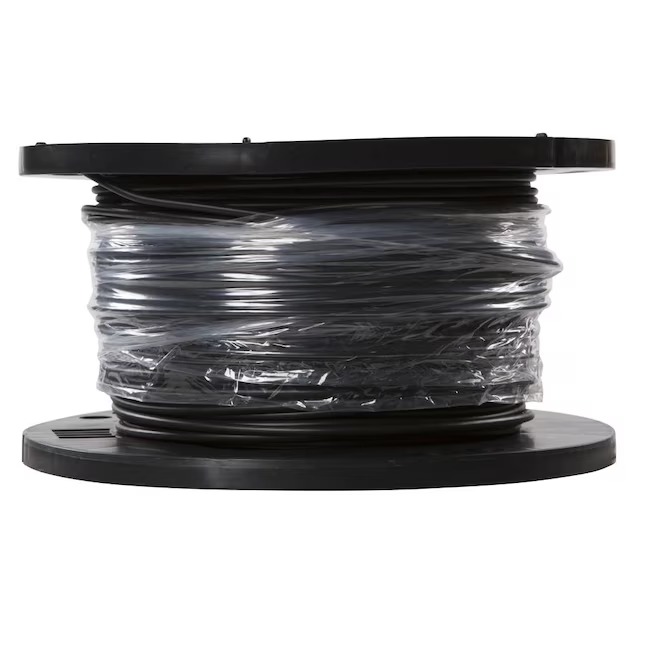

Southwire 500-ft 10 -AWG Copper Stranded Black XHHW Wire (By-the-roll)
Southwire type XHHW conductors are primarily used in conduit or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the NEC.
- Conforms to NEC requirements for use in conduit and other recognized raceways for services, feeders and branch circuit wiring
- Annealed copper conductor
- Designed for wet or dry locations in temperatures not to exceed 194 ° Fahrenheit
- Abrasion-, moisture-, and heat-resistant cross-linked polyethylene insulation
- Suitable for use in anesthetizing locations where a dielectric constant of 3.5 or less is required
- Sunlight-resistant
| General | |||
|---|---|---|---|
| Jacket Color | Black | Stranded or Solid | Stranded |
| Sub-Brand | N/A | Wire Gauge | 10 |
| Voltage Rating | 600 | Conductor Material | Copper |
| Wire Cut Type | By-the-roll | Direct Burial | No |
| Jacket Material | Cross-linked polyethylene (XLP) | Number of Strands | 7 |
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 500 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial | Moisture Resistant | Yes |
| Fire Resistant | No | Shielded | No |
| Maximum Amperage | 30 | UV Resistant | Yes |
| Brand |
|---|
